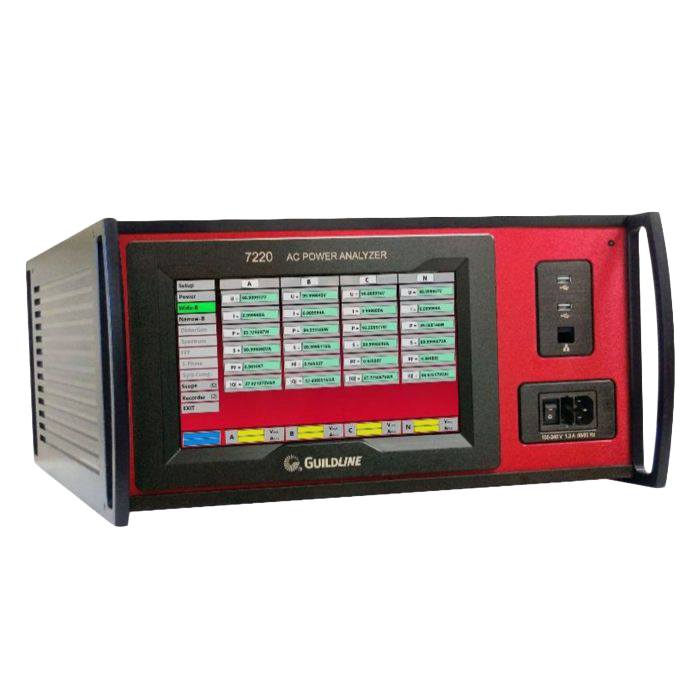

3-Phase Power Analyser

7220 Guildline Instruments

Overview

  • The all new Guildline 7720 3-phase power analyser is a bench mounted AC power measurement standard designed for the most demanding measurement applications today. Unique features with patent pending algorithmic techniques along with multiple high speed A/D signal converters provide asynchronous sampling with very low uncertainties, previously associated with very high cost analysers. The 7220 can measure voltage and current simultaneously to accuracies up to 25ppm for a 10 second aggregation, up to 100ppm for a single waveform.

Spec.

  • 3 Phase & Neutral Measurements
  • Power ≤30ppm for 3/10 second aggregation
  • Power ≤100ppm for a single waveform
  • Phase Angle <100 µRadians for a single period of waveform
  • Able to measure any signal including non-sinusoidal and quasi-stationary

Application

Energy and Power Generation, Military

Downloads

More info on the 7220

3-phase power analyser

3-phase power analyser, the all new Guildline 7720, is a bench mounted AC power measurement standard designed for the most demanding measurement applications today. Unique features with patent pending algorithmic techniques along with multiple high speed A/D signal converters provide asynchronous sampling with very low uncertainties, previously associated with very high cost analysers. The 7220 can measure voltage and current simultaneously to accuracies up to 25ppm for a 10 second aggregation, up to 100ppm for a single waveform.
