Miniature Pressure Scanner

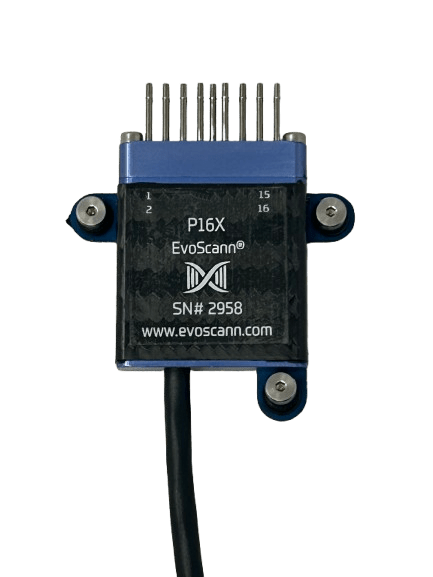

Miniature Pressure Scanner P16-A 16 Channels – Absolute

Scanner EvoScann®

Overview

  • Small and light. Weighs <18g and measures 37 x 32.4x 9.2mm
  • 16 high-performance piezo-resistive pressure sensors
  • Absolute or calculated Differential measurement
  • Lightweight carbon fibre external construction
  • Integral microprocessor
  • High accuracy output directly in engineering units
  • CANbus output

Spec.

  • Accuracy: Absolute: 0.1%FS* Calculated Differential: 0.2%FS* (20-85°C)**
  • Full Scale Range: 200-1200mbarA, 600-1100mbarA, 600-1200mbarA
  • Resolution: 0.01 mbar (0.03 mbar at 1000Hz)
  • Drift: <1mbar / year

Application

On-Car testing
Aerodynamics
Automotive
Aerospace

Downloads

More info on the Scanner

EVOSCANN® P16-A TRANSMITS ACCURATE, FAST DATA, IN ENGINEERING UNITS, DIRECTLY TO THE TEST ARTICLE’S CENTRAL PROCESSING UNIT

Weighing-in at <18g and with compact dimensions, the EvoScann® P16-A can be located within the tightest of spaces where rapid pressure mapping is needed, enabling aerodynamicists and engineers to quickly gather valuable data that has never been easy to access before. Measurement without compromise

Using the latest high-speed data communications technology, EvoScann® P16-A is a pressure measurement and engineering unit converter in one package. With no requirement for external signal conditioning, the EvoScann® P16-A transmits accurate, fast data, in engineering units, directly to the test article’s central processing unit. Using a single cable to provide the power and transmit the data and with a choice of industry-standard connectors, the EvoScann® P16-A scanner is ready to plug-and-play, producing high-speed synchronous data within seconds of connection.

*includes the effects of non-linearity, repeatability and hysteresis
** Expands to 0.25% (abs) & 0.5% (diff) to outer temperature limits
