ALT-8000 FMCW/Pulse Radio Altimeter Test Set

AVIONICS

Viavi

OVERVIEW

Tests FMCW radio altimeters including CDF types

Tests pulse radio altimeters (non-pulse compression types)

Direct-connect to UUT T/R or to installed system via antenna couplers

Full RF loop test allows TX, RX, Antenna or Feeder faults to be identified

Multi-channel operation (via additional test sets)

Programmable multi-leg climb/descend profiles

Large touch-screen display with simple user interface

Remote control interface USB/LAN

SPECIFICATION

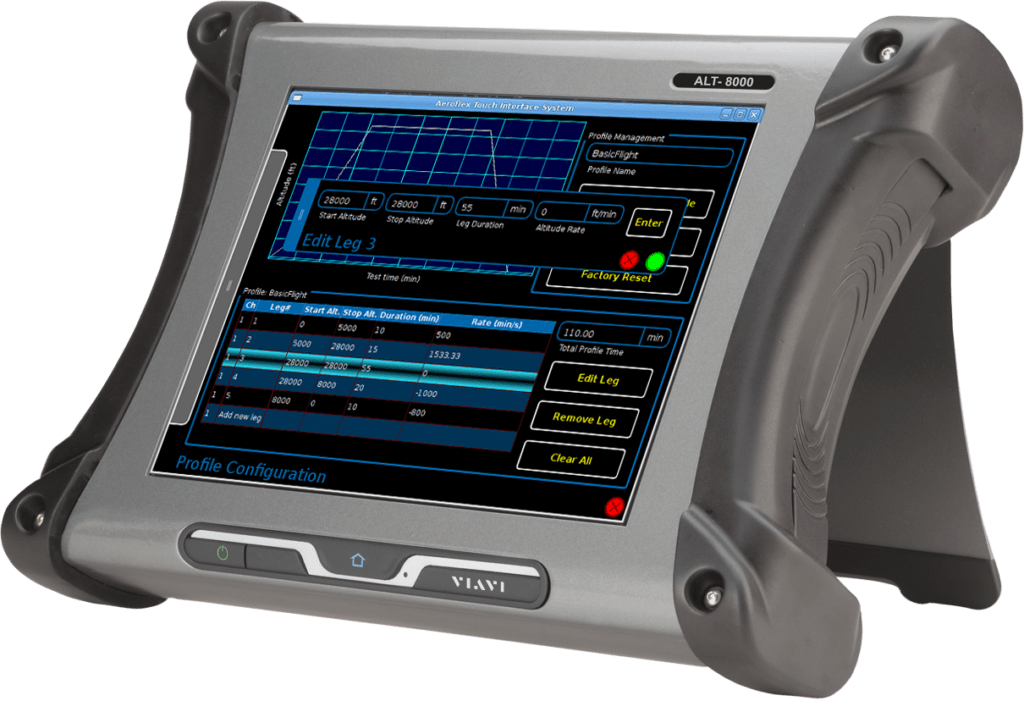

The ALT-8000 is the world’s first and only RF-based portable radio altimeter flight line test set. It weighs approximately 10 lbs. (4.5 kg) with a large 12-inch color touch-screen, making it easy to use. The ALT-8000 is a universal test set for 4.3 GHz FMCW (frequency modulated continuous carrier wave) radio altimeters and pulse radio altimeters. The simulator is also designed to be software upgradable. For military applications, see the ALT-8015

General – The user interface is Windows® based and provides various pages for control of the test set and display of parametric measurements including: TX power, TX frequency (center), sweep rate, TX pulse width (pulse systems).

Profiles – The Profile page allows the user to create, save, recall or delete named profiles. Each profile is comprised of individual legs. Start, stop altitudes and rates are definable for each leg. A profile can then be executed to simulate a complete landing approach including flare out or a take-off and departure.

RF Coupling – The supplied antenna couplers allow the radio altitude system to be quickly verified without access being required to test ports on the UUT LRU. The RF looped test verifies TX frequency, power, sweep rate, and RF level control provides the means to test UUT sensitivity.

Setup – The setup page allows system, user and RF connection parameters to be set by the user, including RS-232, AID, RF cable loss and altitude offset.
