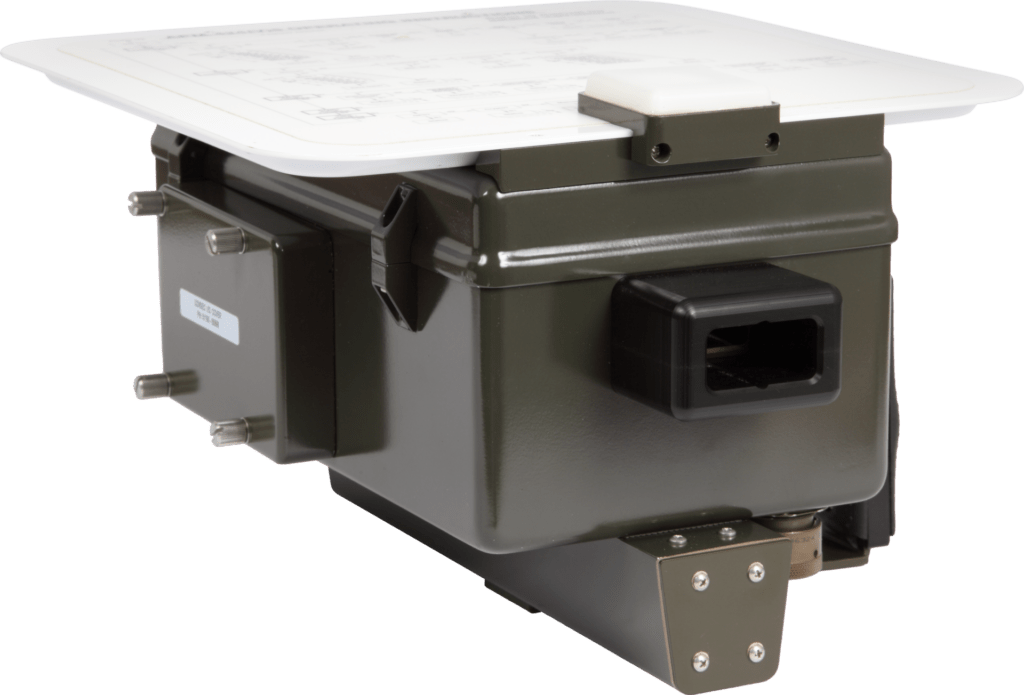

APM-424(V)5 MK XII/XIIA Flight Line Test Sets

AVIONICS

Viavi

OVERVIEW

Certified to DoD AIMS 17-1000. See product brochure for full details.

Supports DoD AIMS 04-900A Option A - KIV-78 and Option B - KIV-77, & SIT-2010 crypto appliqués.

Transponder Test Modes 1,2,3/A, C, S (EHS/ELS), 4, Mode 5 (Level 1 and 2)

Interrogator Test Modes 1, 2, 3/A, C, S, 4, Mode 5, TCAS, ETCAS (Level 1 and 2)

DO-260B compliant; ADS-B Out test capability

SPECIFICATION

The VIAVI APM-424(V)5 easily accommodates a variety of aircraft, ground, and ship platforms to test transponder and interrogator performance. The APM-424(V)5 is a Mode 5 and ADS-B performance and capability upgrade to the TS-4530 and APM424 legacy test sets. The unit closely replicates legacy operation for utilization of existing procedures, making the APM-424(V)5 a cost effective, highly accurate upgrade to fielded test sets.

The APM-424 is offered in two standard configurations:
