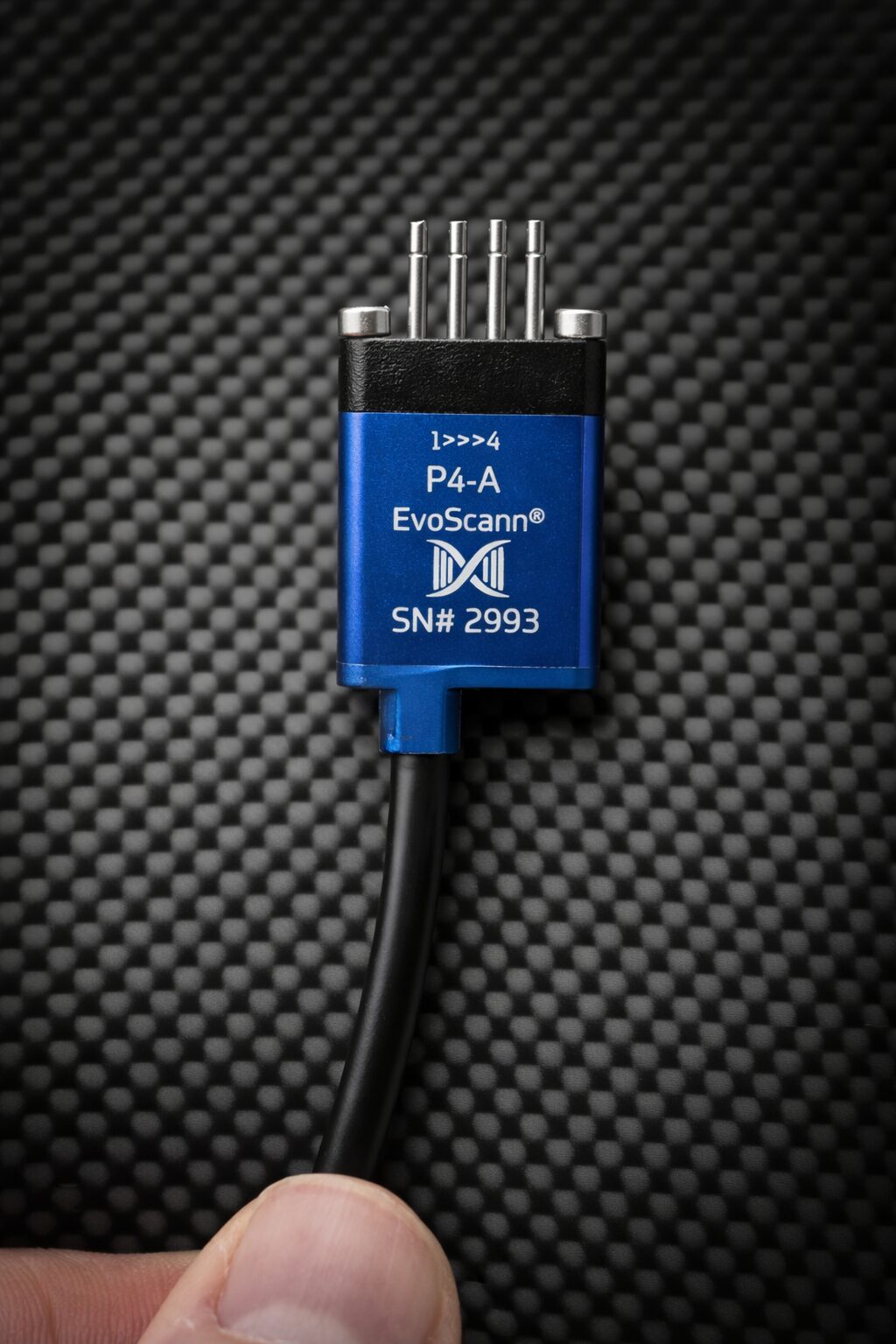

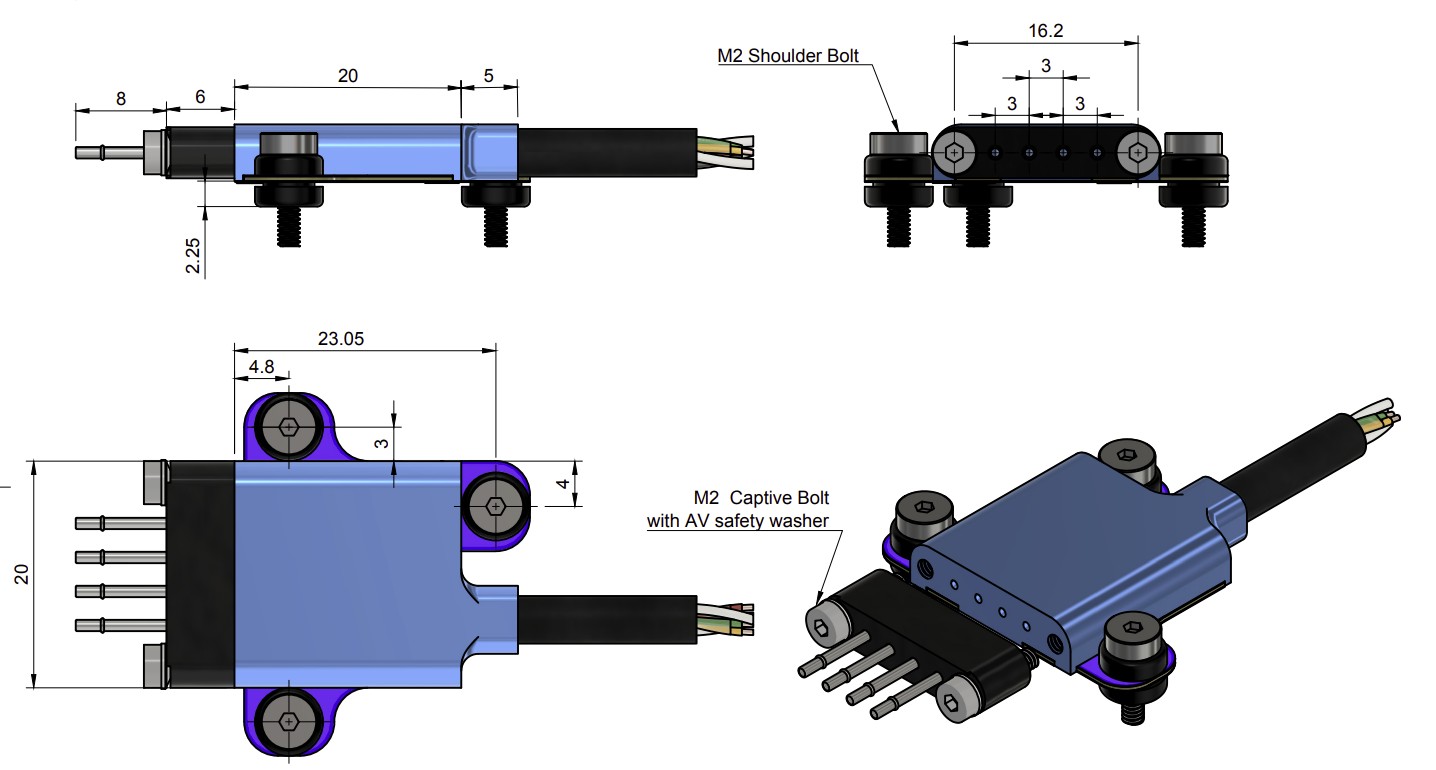

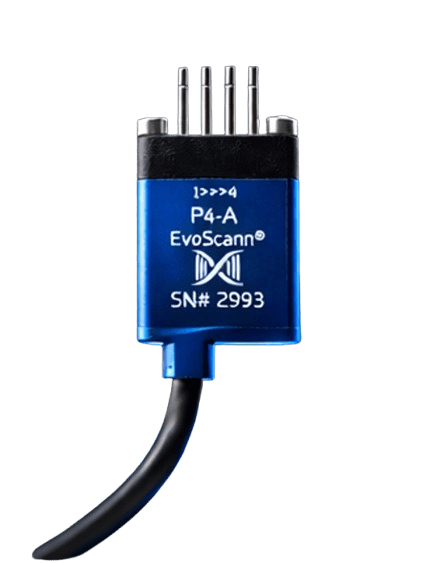

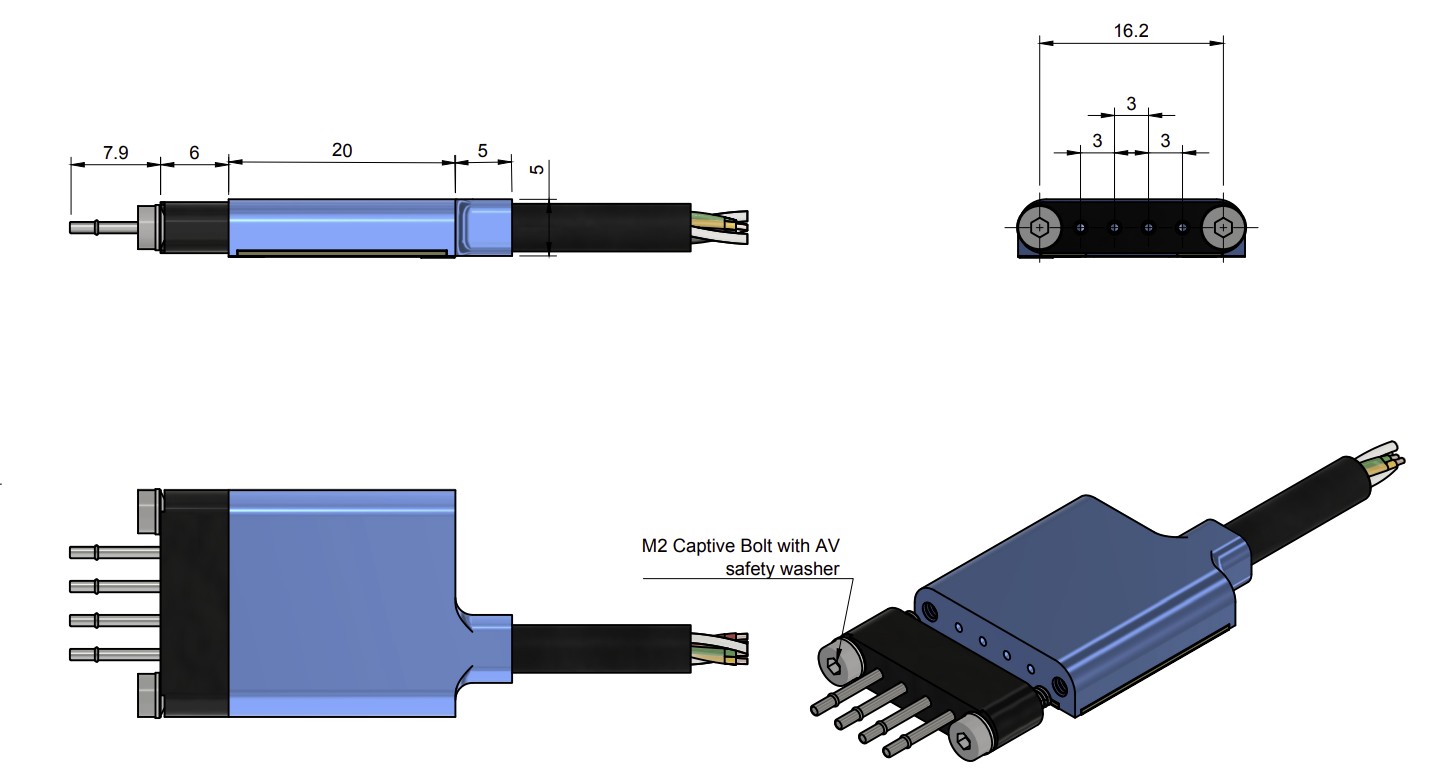

Measuring just 20mm x 20mm x 5mm, the P4-A is the smallest micro pressure scanner commercially available in the EvoScann® P-Series, renowned as the industry’s most compact and rugged digital pressure scanners designed specifically for on-vehicle testing, whether on land, in the air or at sea. This micro 4-channel pressure scanner quickly delivers high-fidelity pressure data directly from the vehicle’s CANbus network to a webserver.
Built for the harsh realities of track-side and on-car environments, with an operational temperature range of -20°C to +135°C, its ultra-compact, fully encapsulated design allows for seamless integration into tight spaces on wings, ducts, diffusers, and other critical aerodynamic surfaces where traditional sensors simply cannot fit.
SMALL and LIGHT

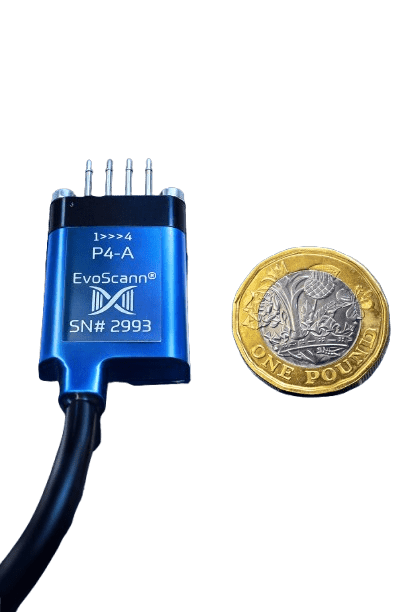

In many aerodynamic testing applications, weight and size limits the ability to measure in difficult locations. Weighing-in at <9g (without cable) and with compact dimensions, EvoScann® P-Series can be located within the tightest of spaces where rapid pressure mapping is needed, enabling aerodynamicists and engineers to quickly gather valuable data that has never been easy to access before. Measurement without compromise.
PLUG and PLAY
Using the latest high-speed data communications technology, EvoScann® P4-A is a pressure measurement and engineering unit converter in one package. With no requirement for external signal conditioning, EvoScann® P4-A transmits accurate, fast CANbus data, directly to the test article's computer/logging system. Using a single cable to provide the power and transmit the data and with a choice of industry-standard connectors, EvoScann® P4-A scanner is ready to plug-and-play, producing highspeed synchronous data within seconds of connection.
