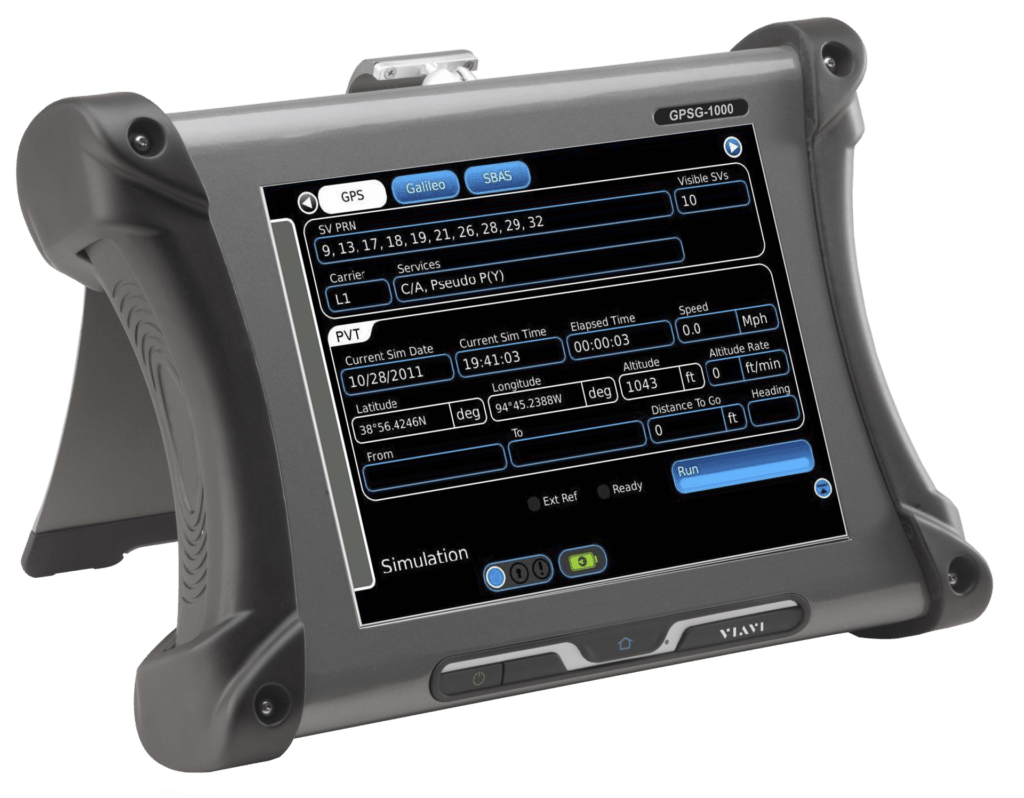

GPSG-1000 Portable Satellite Simulator

The configurable GPSG-1000 is a truly portable, easy-to-use GPS and Galileo positional simulator. It fills a gap in the market by providing a low-cost 12 channel test set that creates three-dimensional simulations. This new simulator is also designed to be software upgradable. Versatile time-saving portable test set for GPS/GALILEO receivers including WAAS/EGNOS SBAS simulation

System – Simulated 3D position may be user entered in latitude/longitude/height format or 3D position may be dynamically simulated utilizing a multi-leg waypoint entry scheme. An unlimited number of navigation plans may be saved and recalled under a user assigned name. A built-in GPS receiver allows positional simulation in the form of a range, heading and altitude based on current test set position.

Satellite Vehicle (SV) Selection – All GPSG-1000 configurations allow GPS and Galileo satellites to be mixed. (The Galileo codes may be updated via a text file upload.)

Waypoints – Waypoint legs join up in 3D space, with either range rate or altitude-rate being auto calculated. Trajectory changes are calculated to simulate real world navigation, i.e. waypoint leg heading changes utilize realistic rates of turn; altitude changes utilize realistic rates of descent or climb. Way points may be entered in LAT/LONG form or automatically recalled from an airport or city database.

SBAS – SBAS satellites WAAS/EGNOS may be manually selected or automatically based on simulated position.

Setup – The setup page allows system, user and RF connection parameters to be set by the user.

* For tracking of L1C, L2C or L5 signals some receivers require synchronized L1 transmissions.
** For tracking of E5 signals some receivers require synchronized E1 transmissions.
