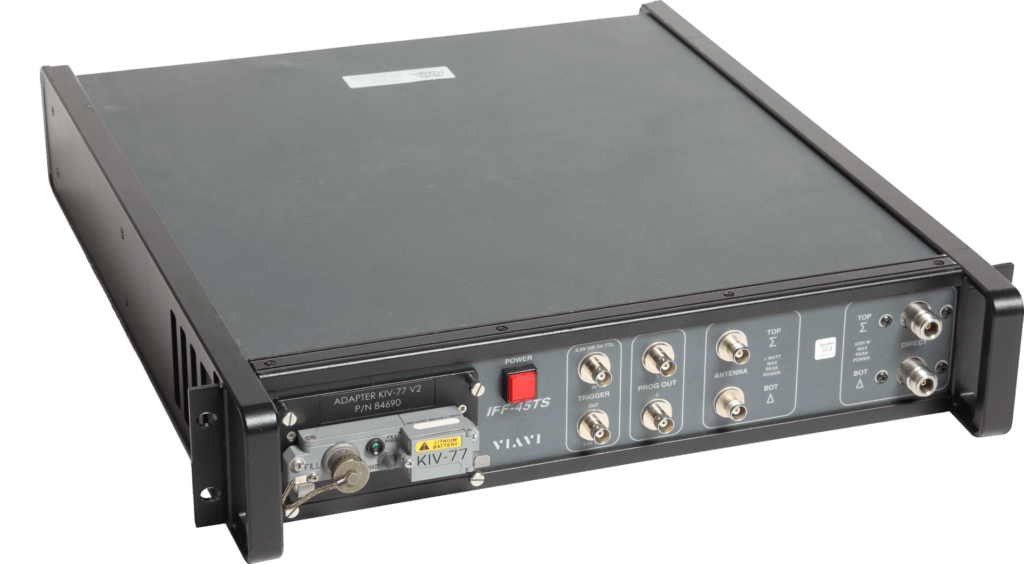

IFF-45TS MK XIIA/TACAN Bench Test Set

AVIONICS

Viavi

OVERVIEW

MK XIIA AIMS certified for Level 1 and Level 2

Accommodates DOD AIMS 04-900A Option A (KIV-78) and Option B (KIV-77)

Dual I/O for diversity testing of transponders or SUM/DIFFERENCE on interrogators

Separate connections for direct or over-the-air testing

Software defined radio design allows waveform flexibility and future growth potential

Dual signal generator design allows coordinated signal production for interference and echo testing

Remote interfaces consist of RS-232, Ethernet and GPIB

GUI allows easy access to test features

SPECIFICATION

The IFF-45TS Transponder / Interrogator / TACAN Bench Test Set is an RF signal simulator that provides support for AIMS Mark XIIA transponders and interrogators. It operates under remote control from a computer or ATE system and provides versatile signal generation and measurement capability of Mark XIIA system signals in bench and over-the-air applications.

Replies and interrogations can be individually configured to support testing requirements. ADS-B Out testing monitors ADS-B, TIS-B, ADS-R and Acquisition squitters. The IFF-45TS emulates either a TACAN ground transponder or a TACAN airborne interrogator, providing six TACAN test modes
