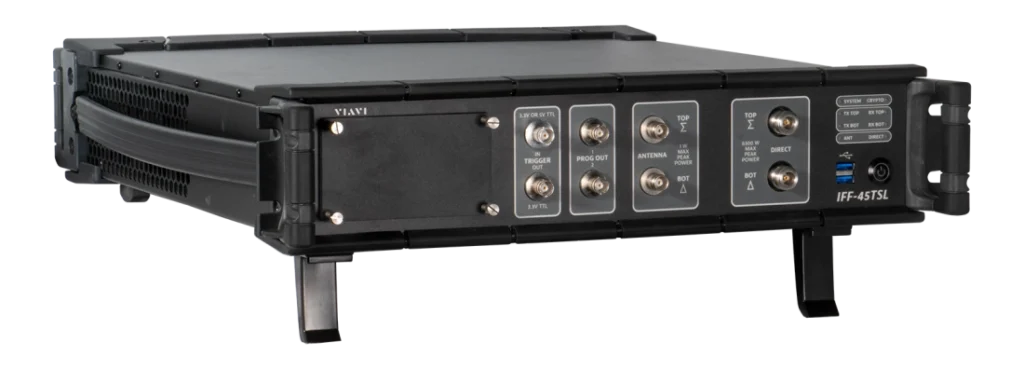

IFF-45TSL MK XIIB and TACAN Bench Test Set

AVIONICS

Viavi

OVERVIEW

Mode 5 testing without actual cryptographic applique and keys using integral mode 5 emulator

Supports DoD AIMS 04-900A Option A - KIV-78 and QRTK6 NG (with Airbus DS QRTK6 NG adapter) and Option B - KIV-77 and SIT-2010 crypto appliqués, KIV-79

Separate connections for direct or over-the-air testing

Test ranges of up to 3 km with appropriate antennas

ADS-B Out

Over-the-air platform testing of MK XIIA equipment including Mode 5, ADS-B beacons and TACAN interrogators

SPECIFICATION

The IFF-45TSL test set provides RF signal generation and parametric measurement of MK XIIB and TACAN equipment. Replies and interrogations can be individually configured to support MK XIIB testing requirements. ADS-B Out testing monitors ADS-B, TIS-B, ADS-R, and acquisition squitters. The IFF-45TSL emulates either a TACAN ground transponder, or a TACAN airborne interrogator.
