MPS63 – Next Generation Air Data Test Set

ADTS

D. Marchiori Srl. (DMA)

OVERVIEW

Ps ≥ 55000 ft - Pt ≥ 700 kts

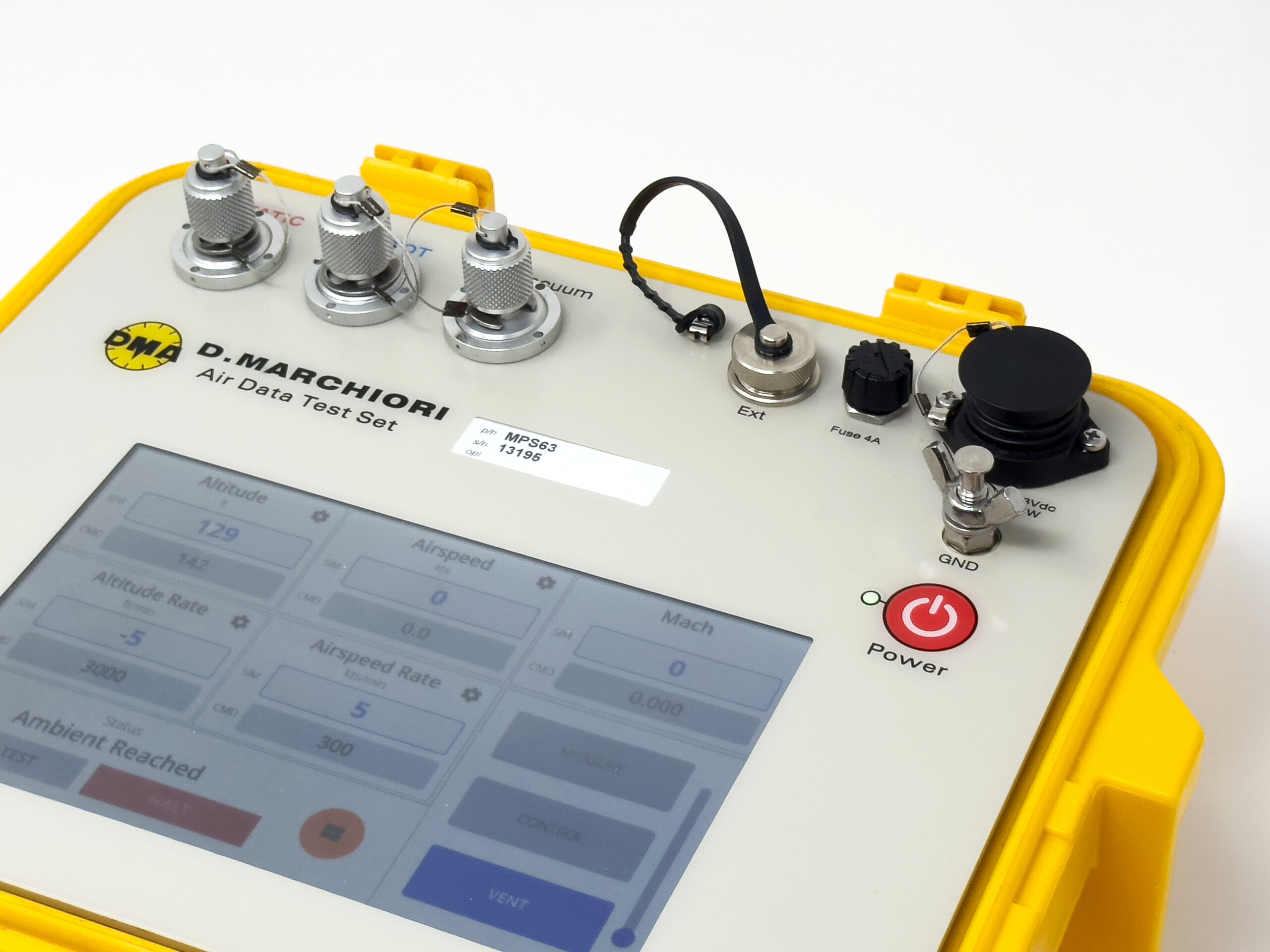

7” widescreen display in a splashproof and shock protected panel indicating required test parameters.

Rechargeable internal battery providing > 2-hour operation.

Integral Pumps with 1500 Hour Warranty

Inbuilt Vacuum Source enabling DMA Adapter Kit operation

Integrated Wi-Fi

RVSM Compliant

IMAGES

SPECIFICATION

The DMA MPS63 Air Data Test Set (ADTS) is a third-generation evolution of the MPS43, delivering accurate and reliable air data testing in a compact, lightweight and rugged design.

Designed for demanding aerospace and flight-line applications, the MPS63 provides high-accuracy static pressure, altitude, airspeed and Pt/Qc testing, combined with intuitive operation and advanced automation.

Key Features

Compact, lightweight and rugged aerospace design
Widescreen colour display with clear test instructions and results
Simultaneous display of commanded and measured values
High-accuracy absolute and differential pressure measurement
Reduced warm-up time through pressure and temperature sensor characterisation
30 programmable test profiles, with up to 26 test points each
Storage for up to 300 test results across 3 UUTs
Software-controlled automated calibration with password protection
Integrated safety limits to help protect the UUT
Internal rechargeable lithium battery providing up to 2 hours backup
Built-in vacuum source for suction cup adapter kits
Optional 3-Ps + 3-Pt manifold for simultaneous multiple-probe testing
Wired, Bluetooth, Wi-Fi and PC remote-control options
EPR display and optional Gray code altitude encoder

Designed for Efficient Flight-Line Testing

The MPS63 combines portable air data testing with rugged construction and low-maintenance operation. Pressure and vacuum pumps operate only when required, helping extend pump life.

Its intuitive interface reduces menu navigation, while automated test profiles and result storage simplify repetitive testing and documentation.

Flexible Remote Operation

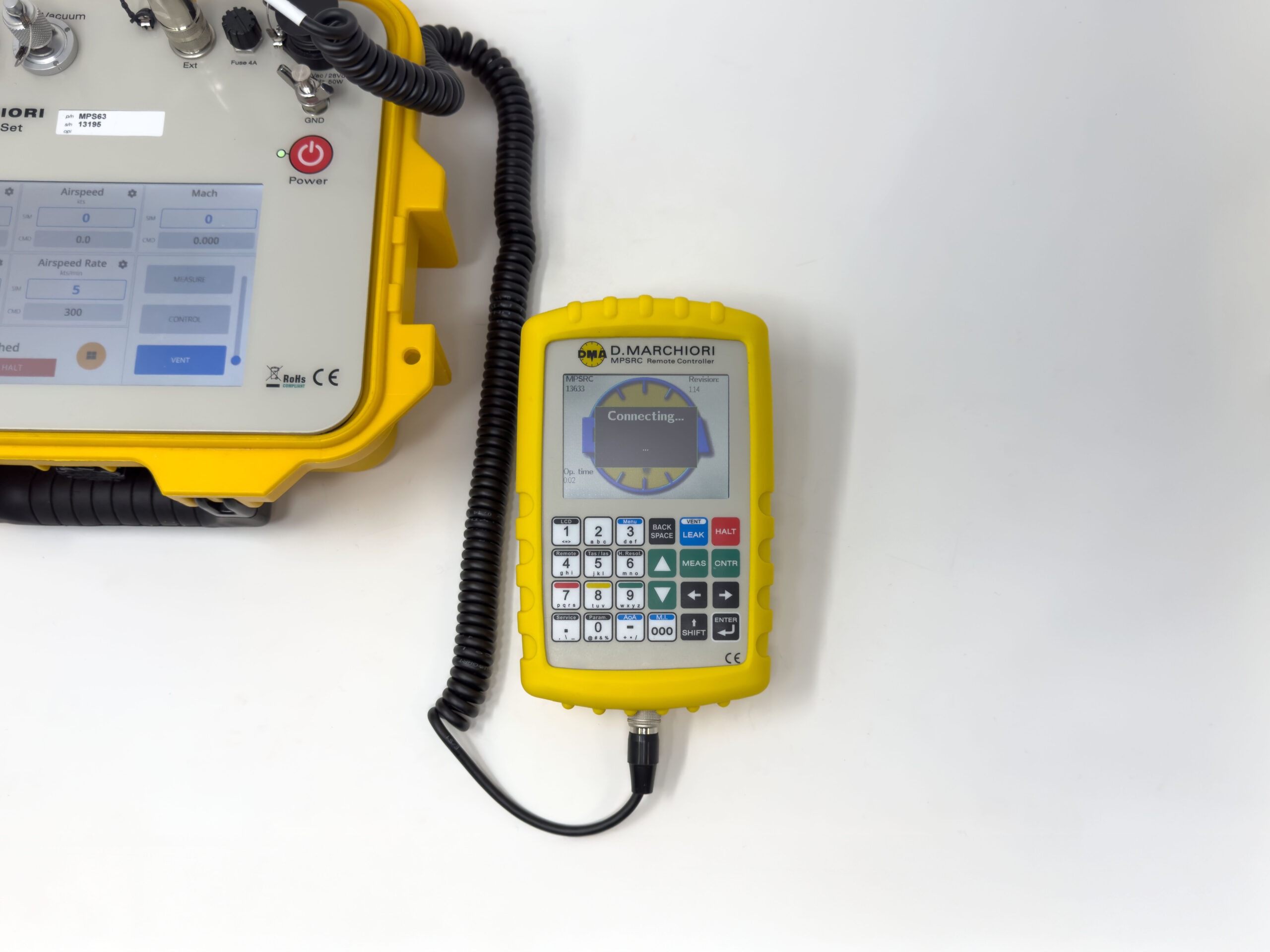

The MPS63 can be controlled using the MPSRC wired remote, MPSRW2 Bluetooth remote, Android or Apple tablets via Wi-Fi, or ADWIN PC software, providing flexibility in the workshop or on the flight line.

Reliable Air Data Test Equipment

With accurate pressure measurement, integrated UUT protection, automated calibration and flexible connectivity, the DMA MPS63 ADTS provides a compact and cost-effective solution for aerospace air data and pitot-static testing.
