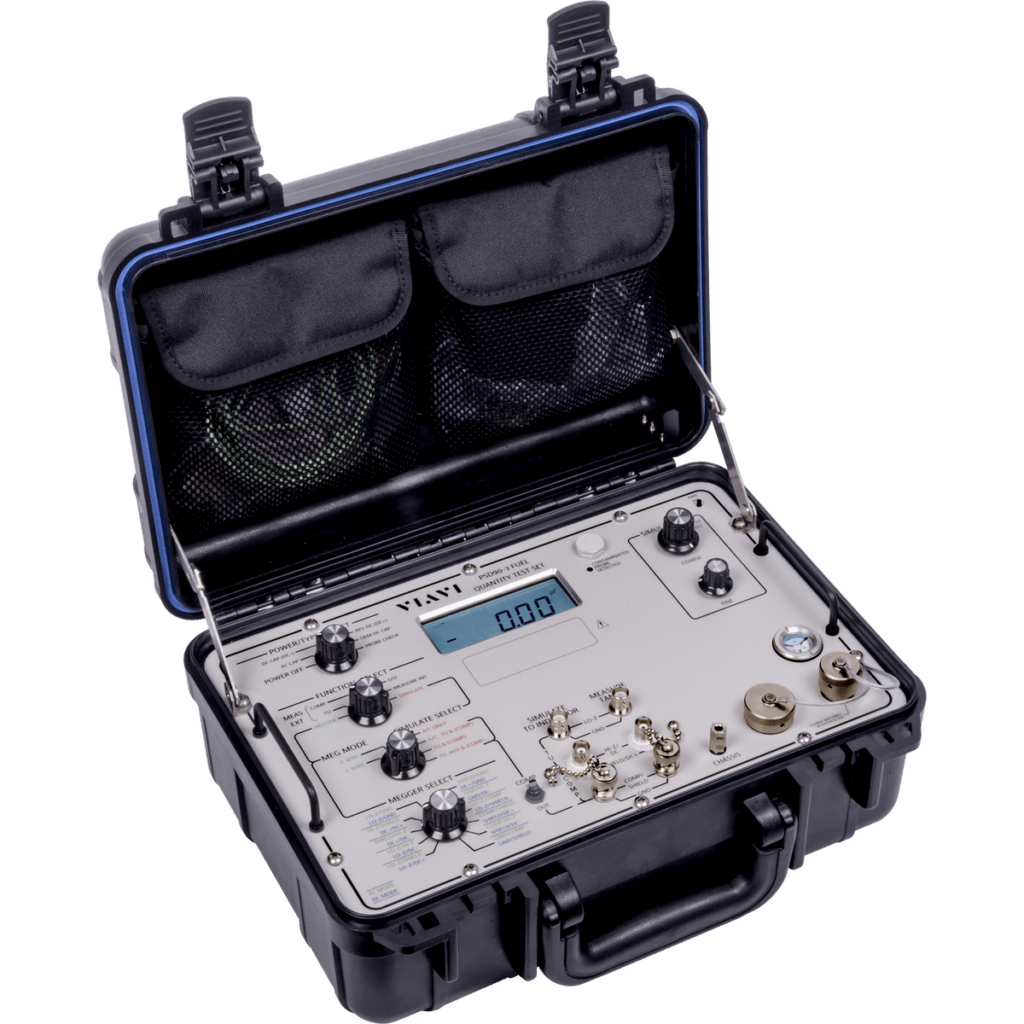

PSD90-3 Fuel Quantity Test Set

AVIONICS

Viavi

OVERVIEW

Measurement of capacitance, DC voltage, insulation resistance, and Distance to Fault (DTF)

Simulation of capacitance for indicator testing

Automatic contaminated fuel probe detection while performing normal capacitance tests

Manual troubleshooting of contaminated fuel probes using the CHECK PROBE function

Low Voltage/Low Current Mode allows isolation of intermittent or corroded connections

Megger and capacitance manual ranging modes assist in finding intermittent faults

REV DC (DC+) Mode measures capacitance from the DC+ side of the tank unit for complete testing DC capacitive fuel systems

Compatible with existing aircraft fuel quantity system interfaces

Closed box calibration using front panel controls

Self-test on power-up

SPECIFICATION

The PSD90-3 Fuel Quantity Test Set will test any AC or DC capacitive fuel, water, liquid oxygen (LOX), or engine oil system.

When combined with an aircraft specific interface, the PSD90-3 allows the user to test, troubleshoot and isolate fuel system issues, calibrate fuel quantity indicators, and detect contaminated fuel probes.

Developed for use in all environments the PSD90-3 is ideal for flight line testing on battery power or bench testing on external power.

Contaminated Probe Testing

The PSD90-3 Fuel Quantity Test Set provides users with two methods; Auto and Manual, for detecting and isolating contaminated fuel probes caused by particulates, water, microbial growth, or other sources of contamination.

During normal capacitance measurements, the contaminated fuel probe detection function will automatically alert the user via a Degree of Error indication on the display and with a Contaminated Fuel Probe Detected LED on the front panel.

Once there is an indication of possible probe contamination, the user can manually test using the Check Probe function with a user-selectable Percent of Error limit which will illuminate the Contaminated Fuel Probe LED indicator if exceeded.

Aircraft Specific Interface

Each aircraft platform requires a unique interface to access the FQIS. The complexity of the fuel system determines the capability of the interface to allow for complete testing of the fuel quantity system.
