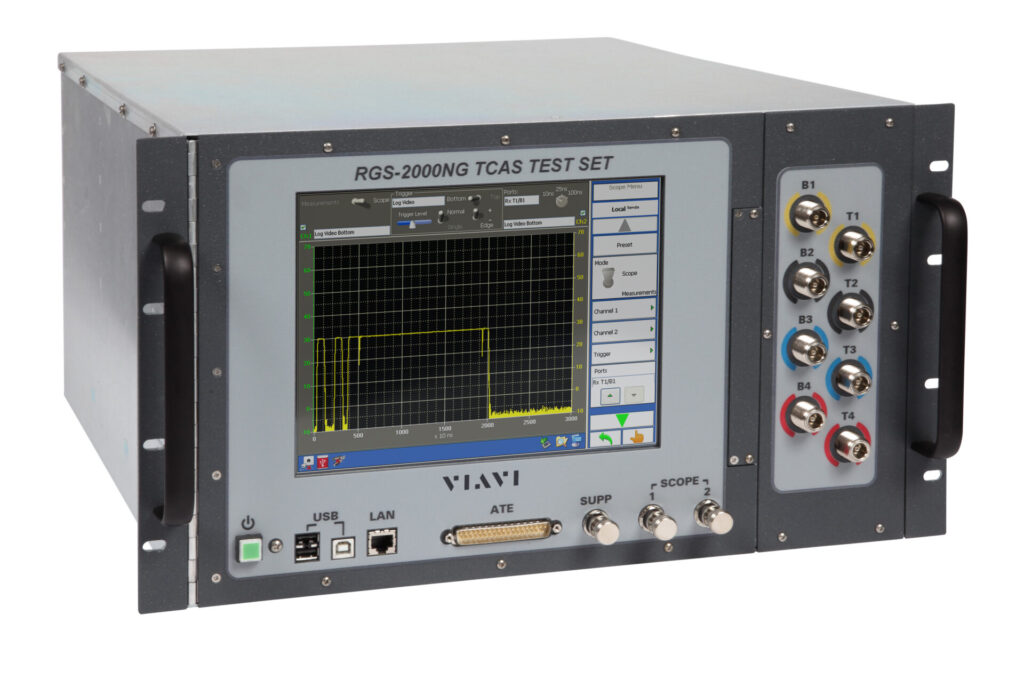

RGS-2000NG NextGen TCAS Test Set

AVIONICS

Viavi

OVERVIEW

Software-driven design allows for field updates for adding new features, capability or modifications due to industry changes

More test capability than any tester in the market, all packed into one box

TCAS and ADS-B Target Generator

Simulates 32 dynamic and 568 static ADS-B/TCAS targets at 1090 MHz in scenario mode

ADS-B squitter encode/decode

Pulse and frequency measurement

Transponder test option for Modes A, C, S

10.4 inch touch screen LCD display for operator control of all test set capabilities or can be remotely controlled via GPIB or Ethernet

Hybrid surveillance

SPECIFICATION

The RGS-2000NG TCAS Test Set is an RF signal generator/receiver for testing TCAS (Traffic Alert and Collision Avoidance System) with an option available for testing transponder LRUs. The RGS-2000NG was designed with modern software-driven digital modulation technology and is the RGS-2000 replacement for engineering development, design validation, manufacturing and return-to-service testing.
